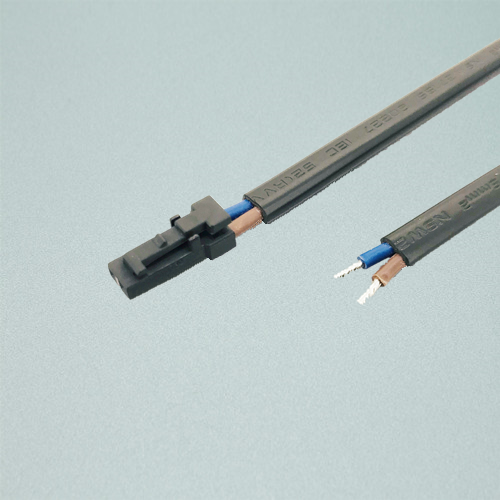

LED Male Plug

Art.No : L813HF-B
Rated values :Max.4A 12V/24V DC
Materials :Nylon66 UL94 V-0
Approvalse :UL,RoHS,Reach
Cable :VDE H03VVH2-F 2*0.75mm² white
Color :Black
Dimensions :
Applications :Spot Light,Down Light,Strip Light,Bar Light,Glass Edge Light,Task Light
Description

LED Male Plug


Mini Connector System for LED Lights

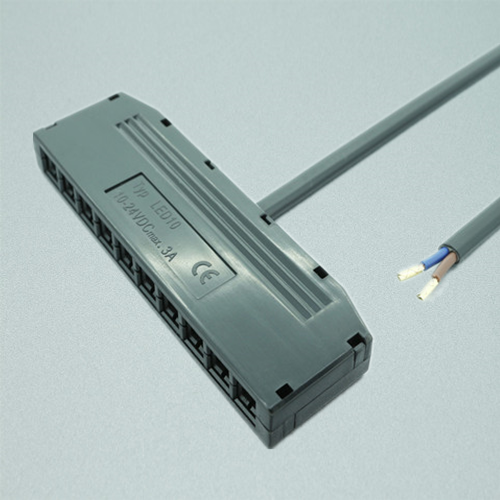

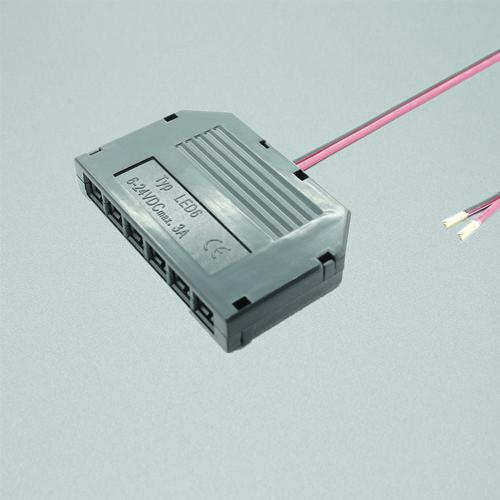

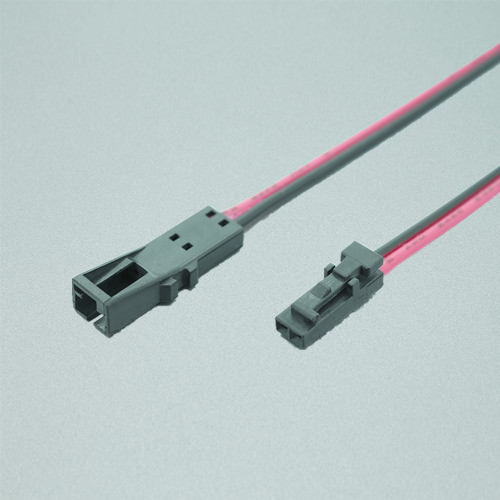

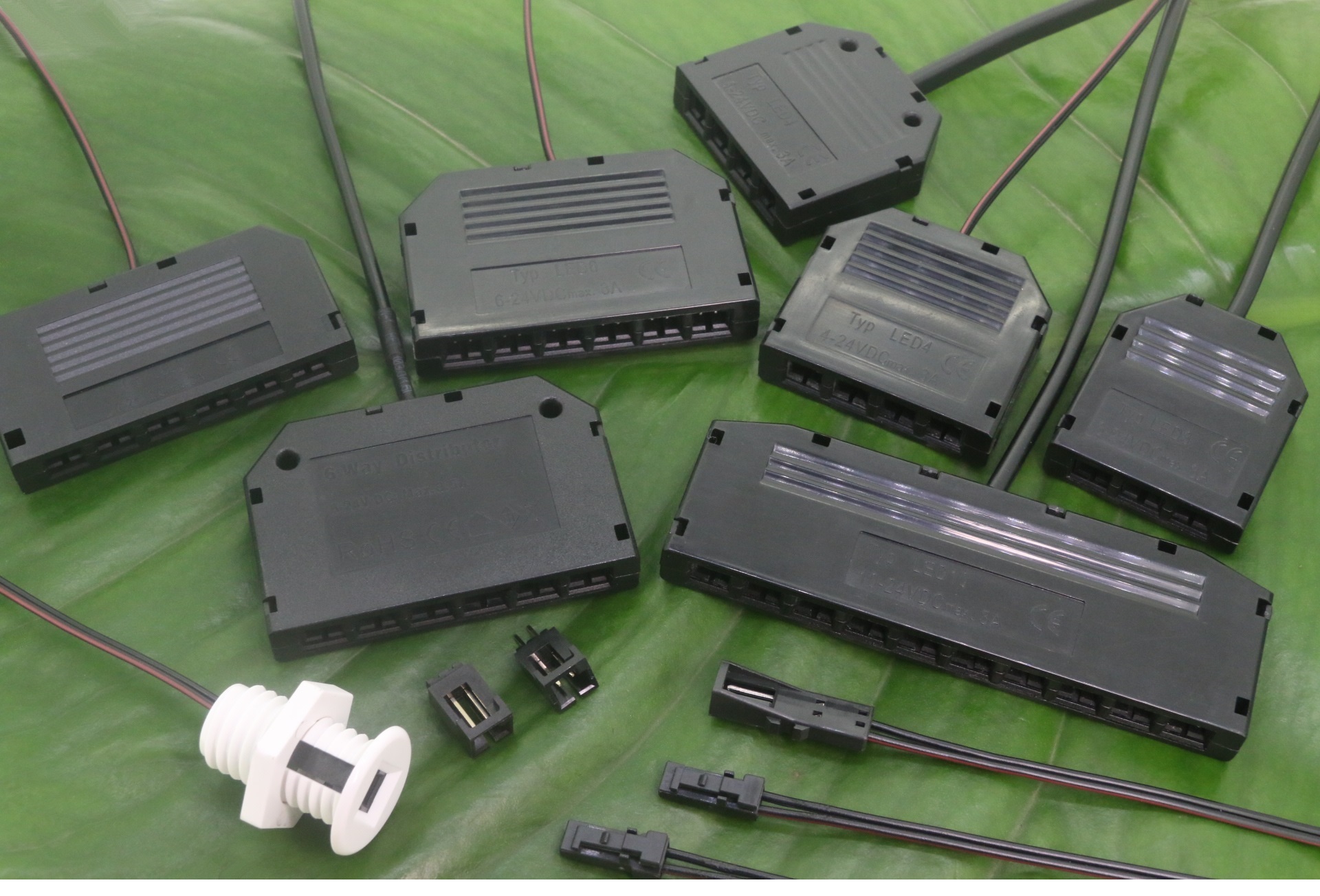

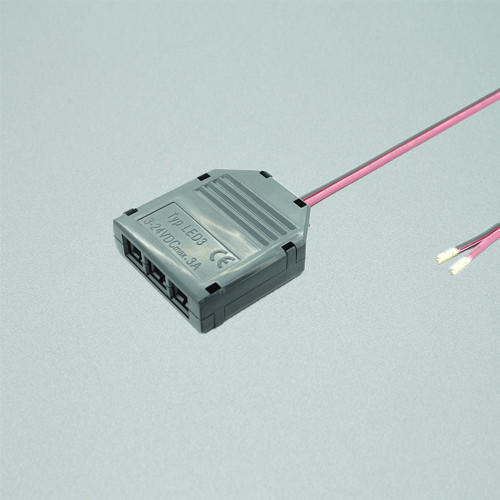

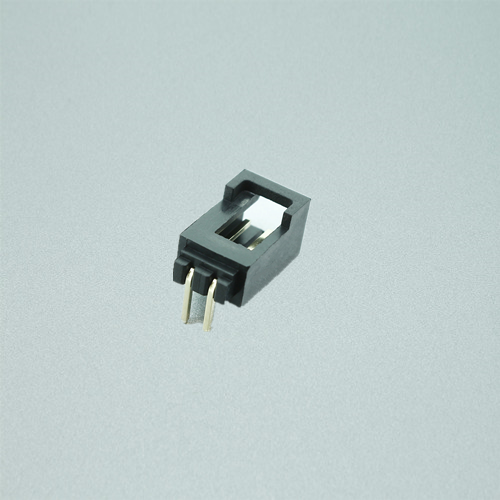

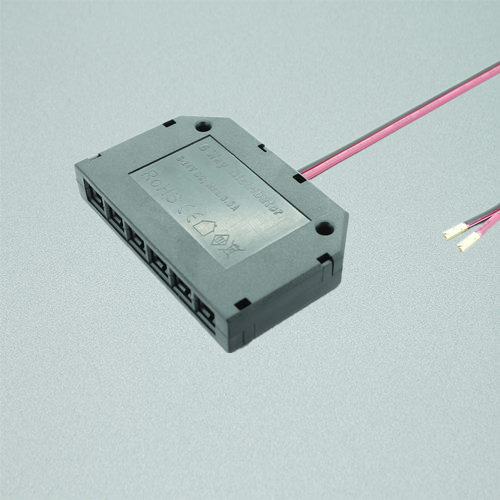

The mini connector system is a 2 pole appliance wiring system.developed for the cabinet LED lighting,furniture LED lighting,LED strips.It includes the coupling(plug & socket),3-way distributor,4-way distributor,6-way distributor,10-way distributor,build-in mounted socket,as well as two PCB sockets.All distributors which have parallel and series circuits.

■ Plug only 5.0mm size(fits through 8mm furniture holes)

■ Plug and socket have UL Certificate

■ Plug and socket Connection:4A,12-24VDC

■ Cable: VDE H03VVH2-F 2X0.5mm² ,20-24AWG or LIYZ 2X0.34mm²
