7.6mm Mini HVL760 250V IP54

The 7.6mm Mini HVL760 IP54 LED connector system from FONGKIT is a small power-to-luminaire HIGH VOLTAGE connector designed to meet the lighting industry’s need for a compact, easy-to-install interconnect solution. This 7.6mm Mini HVL760 IP54 LED connector system the ideal solution for connecting discreet LED lighting in showcases or shelves where space is at a premium. This mini male plug can easily fit into an 8mm opening compared to other connectors that require much larger openings. Targeted applications include lighting wiring in offices, kitchens, bathrooms, display cabinets, mountable lightings, shop and household furniture.

LED Male Plug

Art.No ： 250MP

Rated values ：250V 2.5A

Materials ：Nylon66 UL94 V-0

Approvalse ：TUV,RoHS,Reach

Cable ：VDE H03VVH2-F 2*0.75mm² MAX

Color ：white

Dimensions ：Φ7.6mm

Applications ：Kitchen,bathroom,freezr,refrigerator and supermarket fresh meat shelves led lights

Description

7.6mm Mini HVL760 250V IP54 Connector System.

250V/2.5A 2pole hight voltage waterproof connector system for luminaires.

■ The 7.6mm Mini HVL760 waterproof connector system is designed according the EN61984:2009 standard

for lighting industry applications.Applicable in power connection and coupling between lamps such as lighting

wiring in kitchen,bathroon,freezer,refrigerator and supermarket fresh meat shelves.

■ 7.6mm outer diameter of mini male plug to fit into 8mm shelves holes

■ Connection: max.2.5A 250V AC

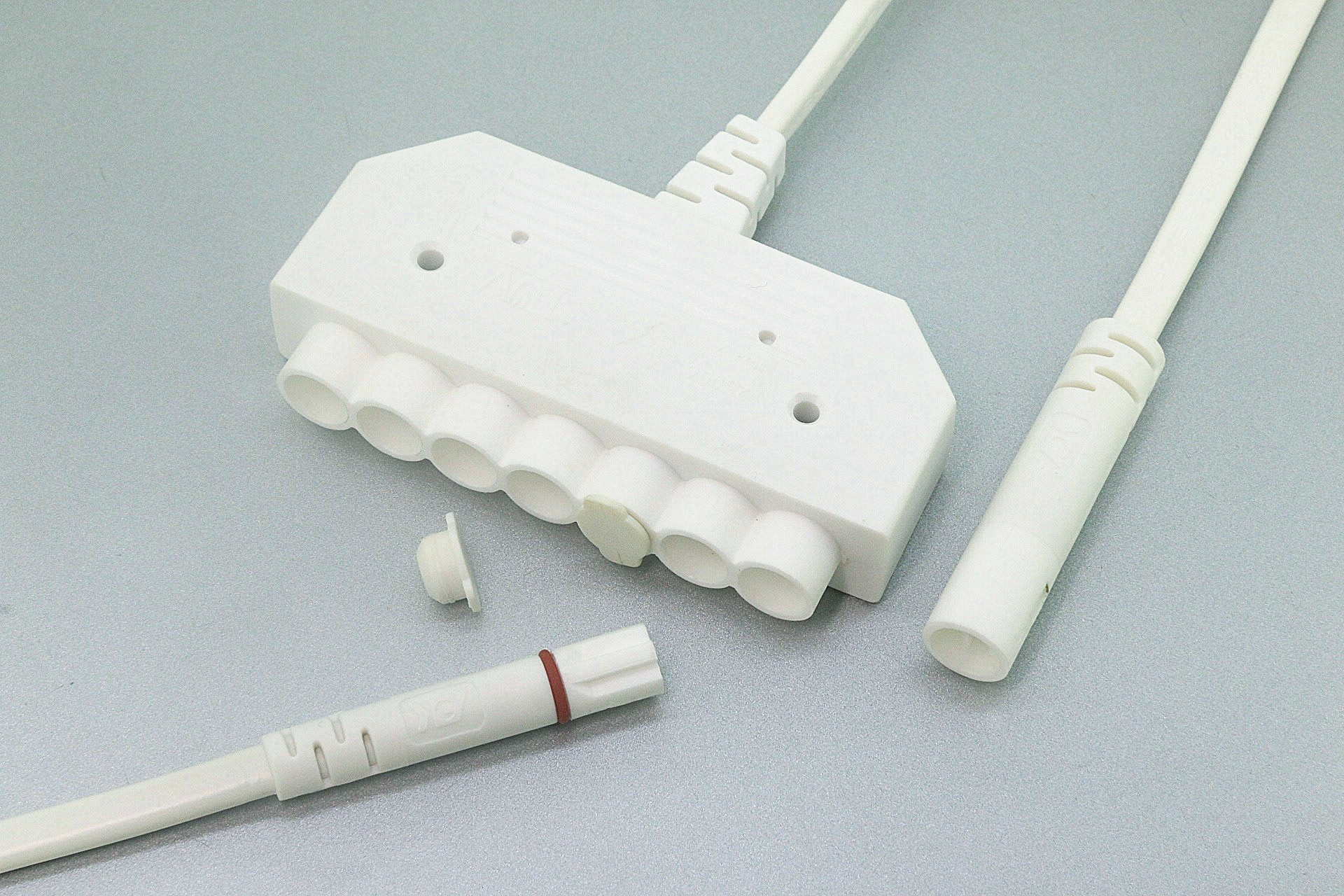

IP54 250V 7way Distributor.jpg

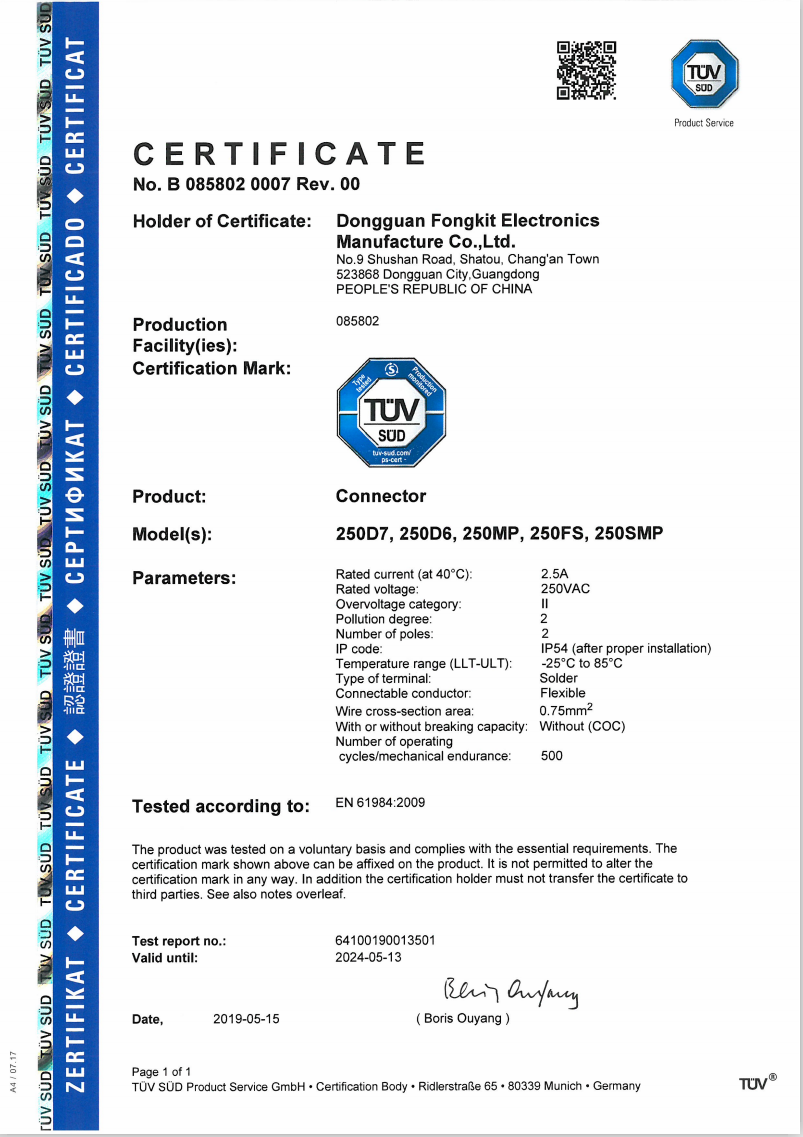

MiniHVL760 IP54 Certificate.png
