Mini LVL780

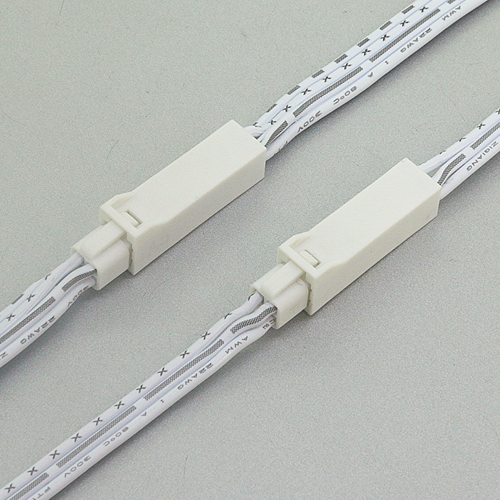

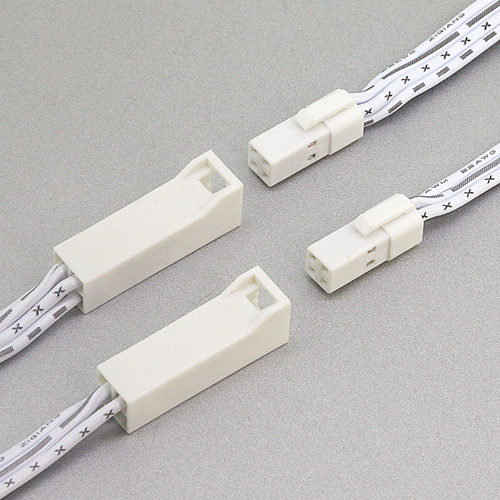

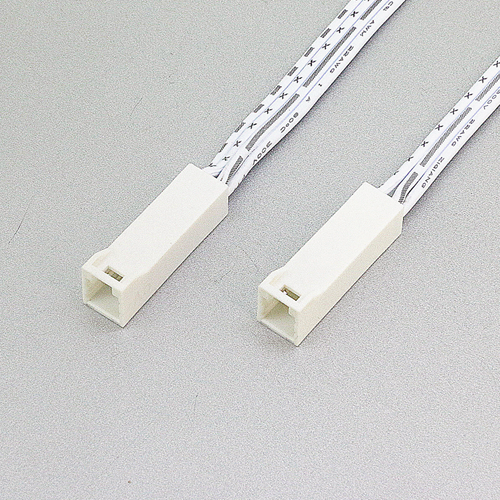

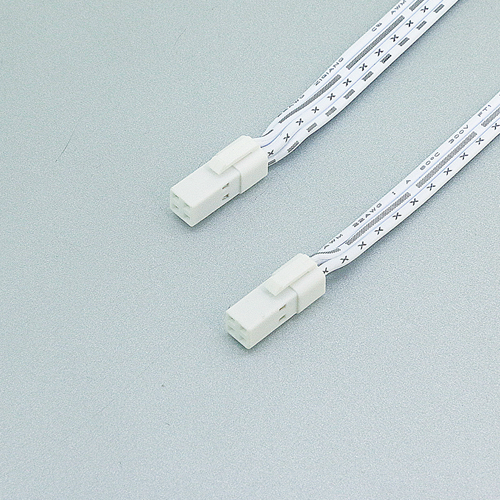

The 7.8mm Mini LVL780 LED connector system 3pole and 4pole from FONGKIT is a small power-to-luminaire LOW VOLTAGE connector designed to meet the lighting industry’s need for a compact, easy-to-install interconnect solution. This Mini LED connector system the ideal solution for connecting discreet LED lighting in showcases or shelves where space is at a premium. This mini male plug can easily fit into an 8 mm opening compared to other connectors that require much larger openings. Targeted applications include lighting wiring in offices, kitchens, bathrooms, display cabinets, mountable lightings, shop and household furniture.

6way Distributor

Art.No ： LVL780-6

Rated values ：Max.6A 12-50V DC

Materials ：ABS

Approvalse ：CE,RoHS,Reach

Cable ：AWG24-20

Color ：white

Dimensions ：25mm(L) x 15.5mm(Φ) x 20.7mm(Φ)

Applications ：LED controller,LED receiver,RGB strip,RGBW strip,Sensor switch,Recess/surface Downlights

Description

LED MINI CONNECTION FONGKIT COMPANY
