7.6mm Mini HVL760 250V

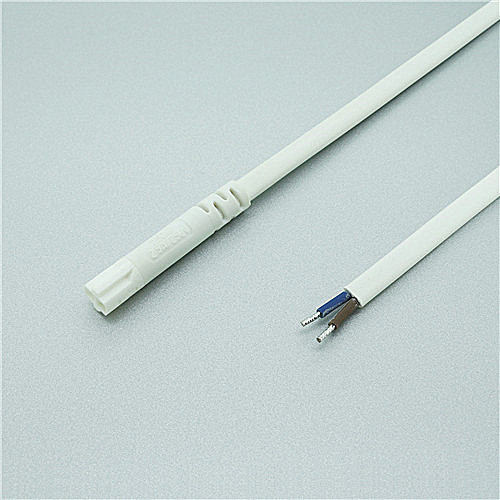

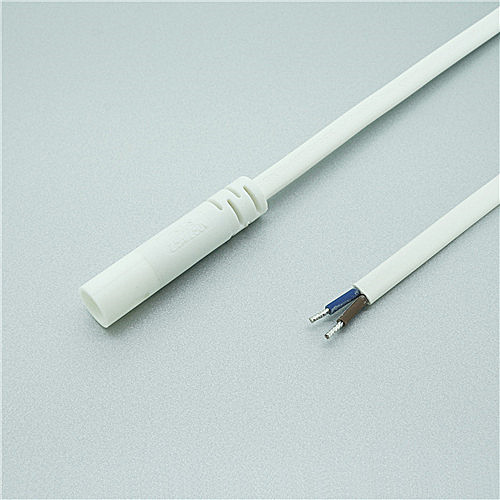

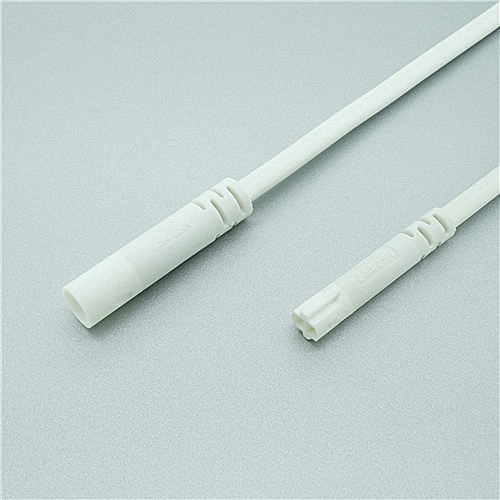

The 7.6mm Mini HVL760 connector system from FONGKIT is a small power-to-luminaire HIGH VOLTAGE connector designed to meet the lighting industry’s need for a compact, easy-to-install interconnect solution. This 7.6mm Mini HVL760 connector system the ideal solution for connecting discreet LED lighting in showcases or shelves where space is at a premium. The mini male plug is so small only 7.6mm outer diameter that it fits into spaces where other connectors can’t go,this mini male plug can easily fit into an 8mm opening compared to other connectors that require much larger openings. Targeted applications include lighting wiring in offices, kitchens, bathrooms, display cabinets, mountable lightings, shop and household furniture.

6way Distributor

Art.No ： 250D6

Rated values ：250V 2.5A

Materials ：Nylon66 UL94 V-0

Approvalse ：TUV,RoHS,Reach

Cable ：VDE H03VVH2-F 2*0.75mm² white

Color ：white

Dimensions ：37mm(L) x 73.5mm(W) x 14.5mm(H)

Applications ：Spot Light,Down Light,Strip Light,Bar Light,Glass Edge Light,Task Light

7.6mm Mini HVL760 250V

6way Distributor
