MINI AMP 250V

Many LED lighting applications require wire-to-wire, positive locking connections. The Mini AMP Series, crimp-style connectors are offered wire-to-wire on a 4.14mm pitch, molded in a RoHS compliant 94V-0 housings. The housings incorporate both keying and a secure, inertia locking feature and are designed to prevent contact stubbing / back-out when mated. Rated at 7A AC (using H03VVH2-F 2X0.75mm² cable ) at 250V. These robust connectors are available with a secondary retainer to ensure the contacts are fully seated and locked into the housings to prevent accidental release. The positive locking system is designed to fit inside the envelope of the mating housing. The series has an operating temperature range of -25 C to +85 C including temperature rise when applying an electrical current. It includes the coupling(plug&outlet), a 4-way distributor.

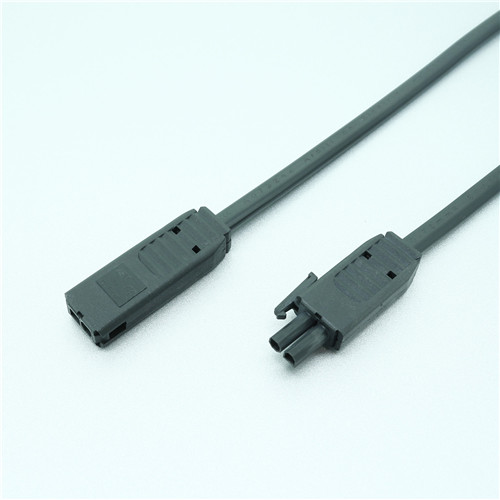

LED Extension Lead

Art.No ： L810A/L809A

Rated values ：250V 7A

Materials ：Nylon66 UL94 V-0

Approvalse ：TUV EN61984, RoHS, Reach

Cable ：VDE H03VVH2-F 2*0.75mm² Black

Color ：Black

Dimensions ：

Applications ：

Description
