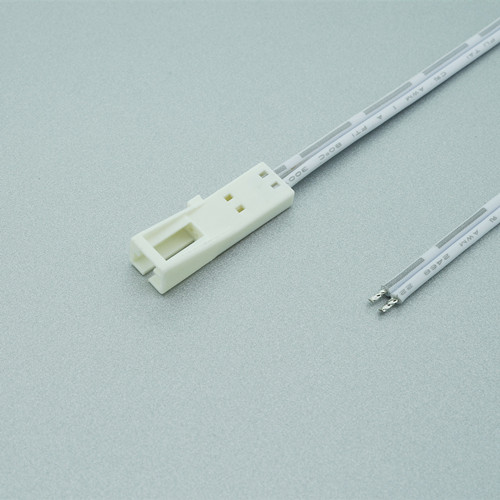

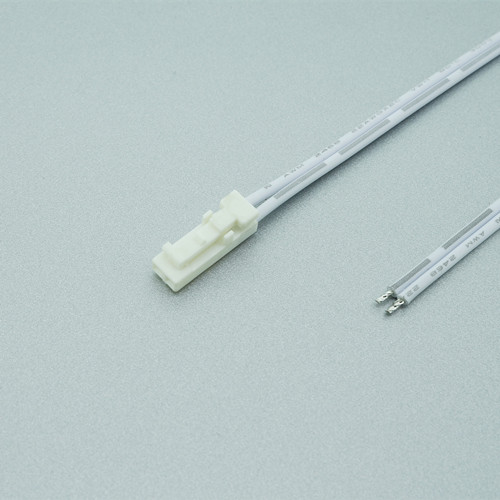

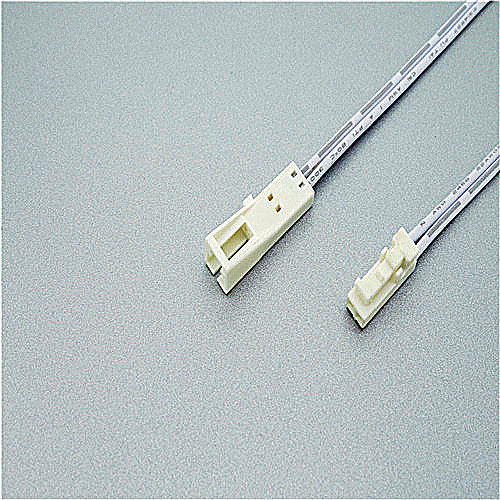

LED Male Plug|LED Lead with Corresponding Accessories。
Mini Connector System for LED Lights

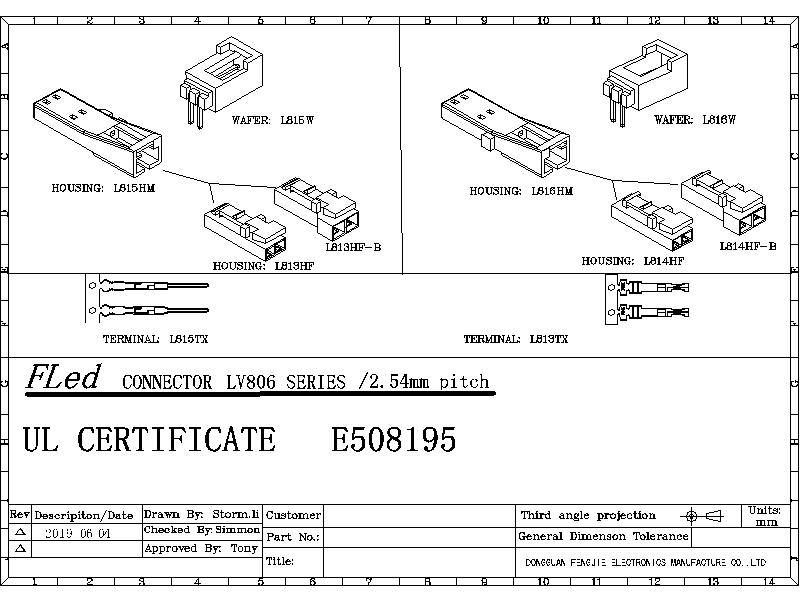

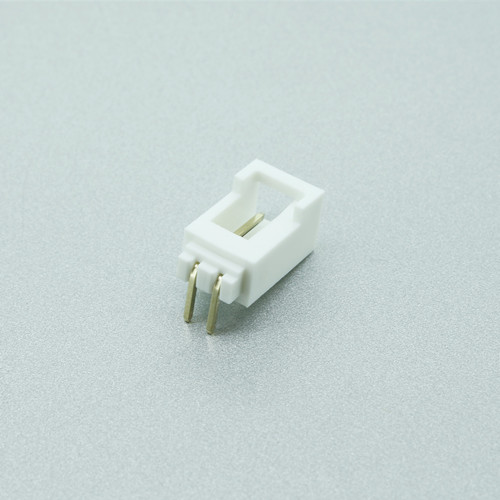

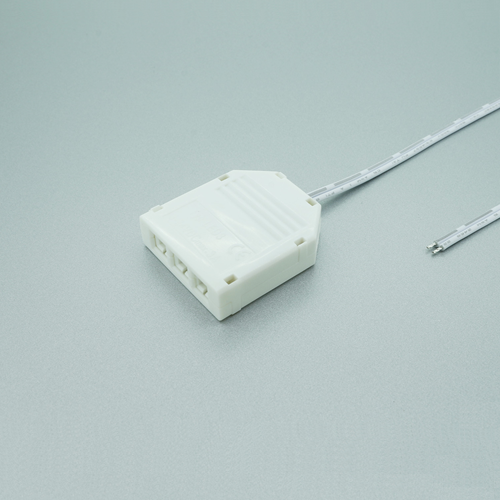

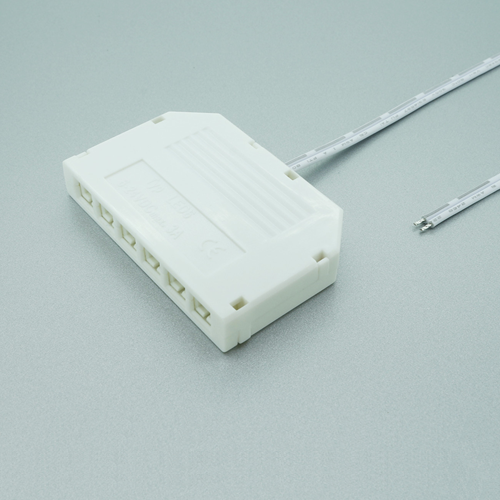

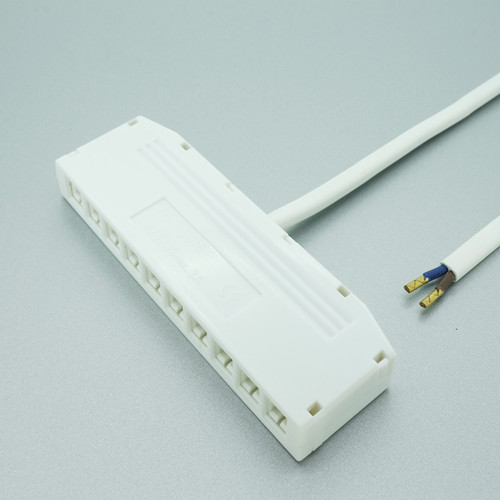

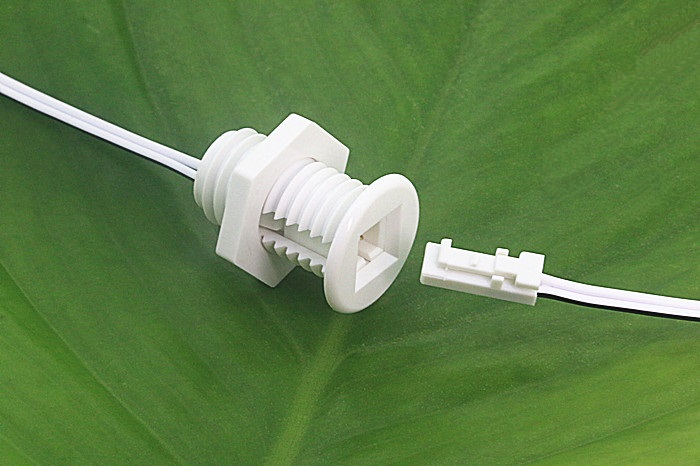

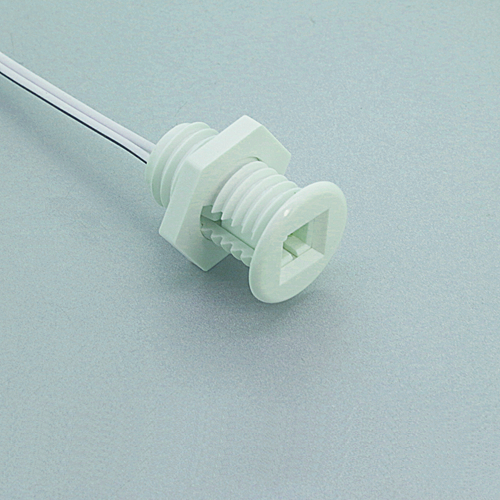

The mini connector system is a 2 pole appliance wiring system.developed for the cabinet LED lighting,furniture LED lighting,LED strips.It includes the coupling(plug & socket),3-way distributor,4-way distributor,6-way distributor,10-way distributor,build-in mounted socket,as well as two PCB sockets.All distributors which have parallel and series circuits.
■ Plug only 5.0mm size(fits through 8mm furniture holes)
■ Plug and socket have UL Certificate
■ Plug and socket Connection:4A,12-24VDC
■ Cable: VDE H03VVH2-F 2X0.5mm² ，20-24AWG or LIYZ 2X0.34mm²
